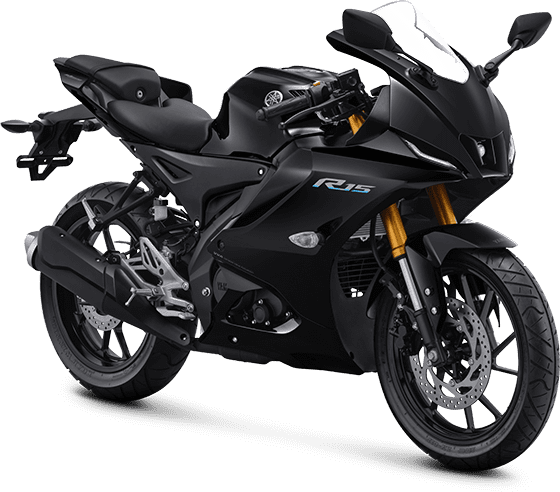

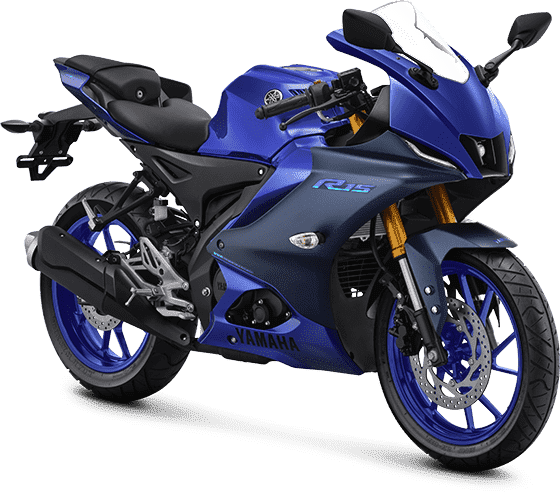

ALL NEW R15 CONNECTED

CONNECT WITH THE R SPIRIT

Rp. 39.240.000 *OTR Jakarta

ALL NEW R15 CONNECTED

CONNECT WITH THE R SPIRIT

Rp. 39.240.000 *OTR Jakarta

FITUR
SPESIFIKASI

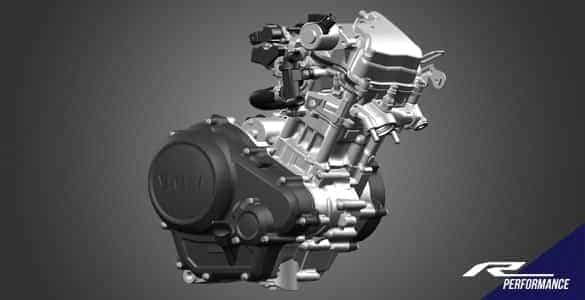

Tipe Mesin Liquid Cooled,4-Stroke, SOHC,4Valve,VVA
Jumlah/Posisi Silinder Single silinder
Kapasitas Mesin -
Diameter x Langkah 58.0 x 58.7 mm
Perbandingan Kompresi 11.6±0.4:1
Daya Maksimum 14.2kW /10000 rpm
Torsi Maksimum 14.7 Nm/8500 rpm

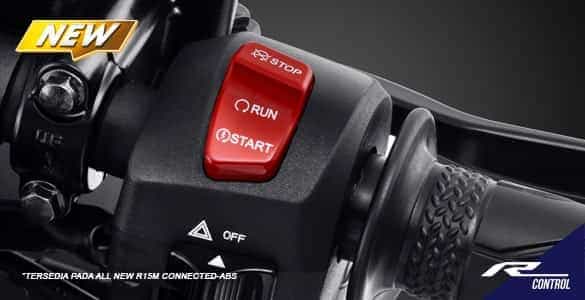

Sistem Starter Elekrik Starter
Sistem Pelumasan Wet Sump
Kapasitas Oli Mesin Total=1.15L;Berkala=0.95L;Ganti Filter Oli=1L
Sistem Bahan Bakar Fuel Injection

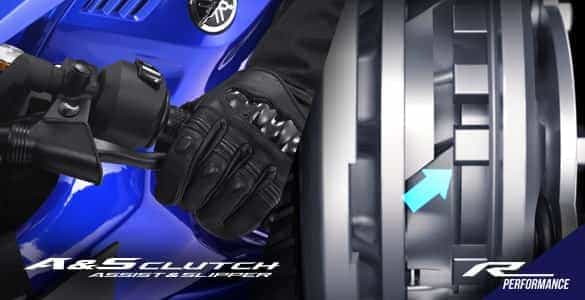

Tipe Kopling Multi Wet Clucth
Tipe Transmisi Manual
P x L x T 1990 x 725 x 1135 mm
Jarak sumbu roda 1325 mm
Jarak terendah ke tanah 170 mm
Tinggi tempat duduk 815 mm
Berat isi 137 Kg (All New R15 Connected),140 Kg (All New R15M Connected)
Kapasitas tangki bensin 11L

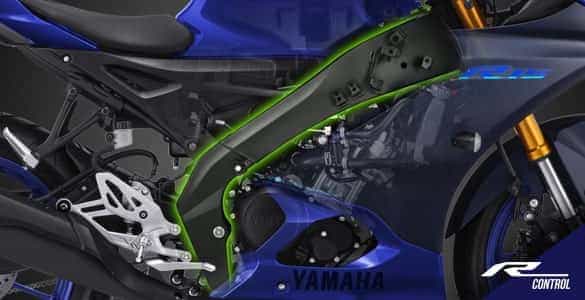

Tipe Rangka Deltabox

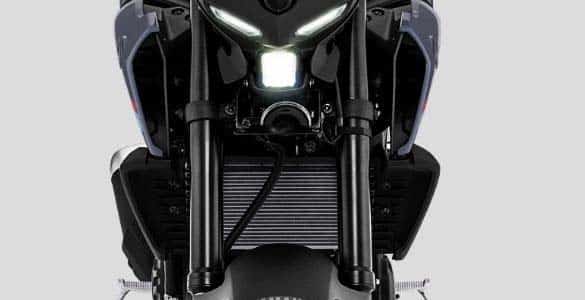

Suspensi Depan Telescopic Fork (Inverted)

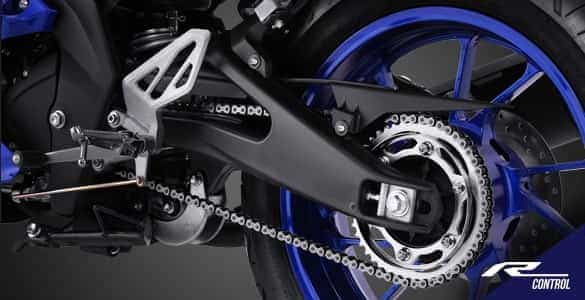

Suspensi Belakang Link Monoshock
Ban Depan 100/80-17M/C 52P
Ban Belakang 140/70-17M/C 66S
Rem Depan Disc Brake
Rem Belakang Disc Brake
Sistem pengapian TCI
Battery GTZ4V/YTZ4V (All New R15 Connected),YTZ6V(All New R15M Connected)
Tipe Busi MR8E9
